LW3: High volume industrial laser station

Laser sources : Fiber, DPSS

Marking area :From 65 x 65 mm to 875 x 300 mm

Compatible Materials : Metals and plastics


• LARGE MARKING POSSIBILITIES
  With its 3-sided door, the LW3 benefits from the best inside height dimensions and can securely envelop and mark parts up to 628 mm high. Thanks to its compatibility with our Fiber, Hybrid, Green industrial laser series, the LW3 can mark with high precision nearly every metal or plastic surfaces on its special positioning table.

• VERSATILE
  From unique identification marking, to multi-level engraving, and matrix marking on a batch of small to medium parts, this industrial laser station can mark your large part at several positions, and levels. Add a 3D module to your LW3 laser to mark sloped parts.

• INDUSTRY ORIENTED
  This laser marking machine is the only large laser engraver of the market with an attached touchscreen allowing the operator to easily manage the direct part marking process. In addition to the easy installation, manutention, and silent/ergonomic door opening, this class 1 laser stands out with its exceptional build quality.

Technical specifications

New ZX bridge

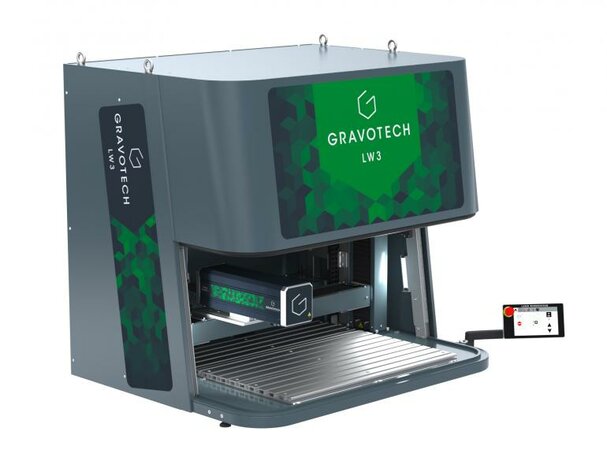

The LW3 is also available with a ZX bridge configuration, that enables the laser head to move along those 2 axes.
It can now mark very large parts from one end to the other, extending the effective marking area from 300 x 300 mm to 875 x 300 mm (34.45 x 11.81 in).

Integrated touchscreen
Control the marking process with the 7 inch color touchscreen.
Select jobs that are loaded in the machine and securely mark your parts.

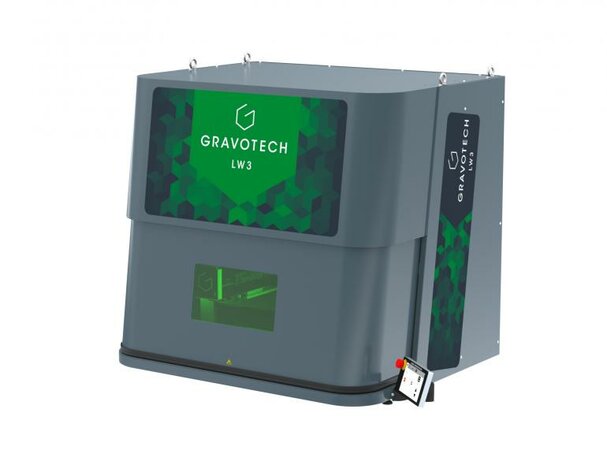

Automatic and secure door
The 3 sided-door has been designed for ease of access and easy loading of the part.

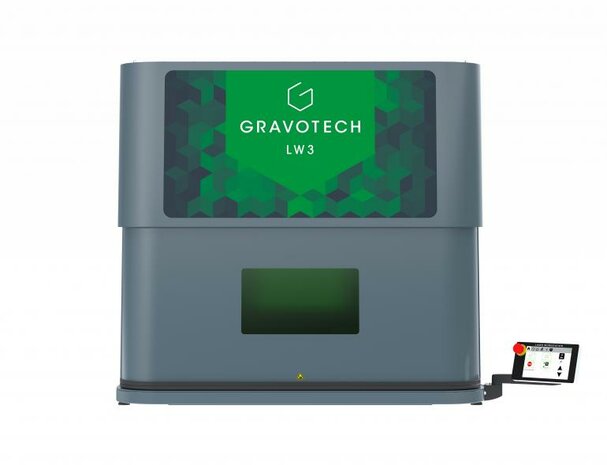

When the marking job starts, the door automatically closes, and then reopens when it finishes. You can check the state of the permanent marking through the 380 x 210 mm protective window.
In addition, its opening adds no extra height to this class 1 laser machine.

External dimensions
Stand alone 1213 x 1023 x 1120 mm (LxWxH)
(47.76 x 40.28 x 44.09 in)

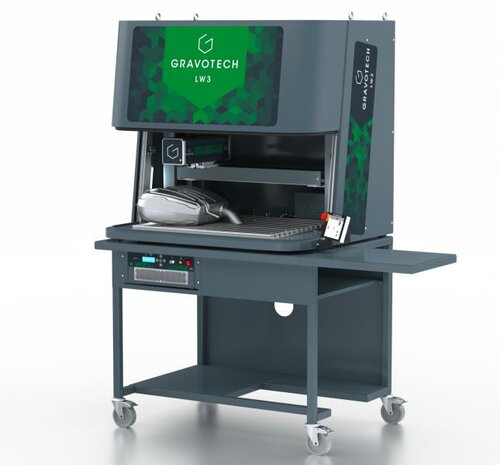

With trolley  1213 x 1023 x 2120 mm (LxWxH)
(47.76 x 40.28 x 83.47 in)

Handling
The LW3 around 200 kg, and with the optional trolley and wheels, this large laser engraver is easy to move around and handle.

General

Laser sources:
Fiber, Hybrid or Green
Use rate
Adapted for high production rates

Marking capacity

Max marking area
300 x 300 mm (11.81 x 11.81 in)
Max object size
810 x 720 x 628 mm (31.89 x 28.35 x 24.72 in)

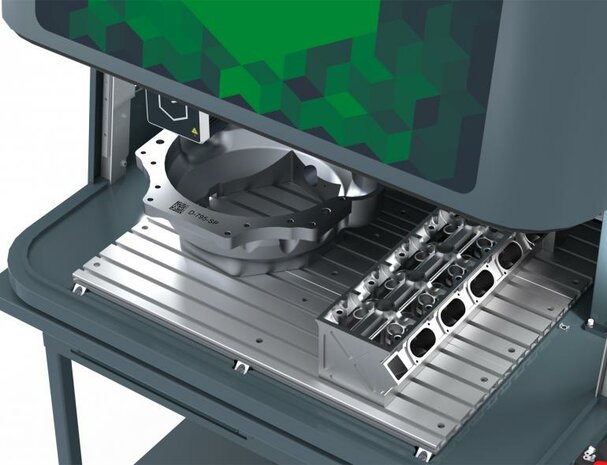

Large part marking

The way the LW3 is built offers many possibilities for large direct part marking.

Obviously the size of this workstation inherently allows for big parts to fit in and receive their unique identifying number.
Indeed the enclosure has one of the best indoor heights, and can hence host parts up to 628 mm high.

In addition, this industrial laser station is equipped with a large metal table with rails and grooves for part and holder positionning.

If you need to mark parts bigger than the LW3, a Class 4 override accessory can permit marking while the door is open.



High safety certification

Thanks to its Class 1 laser certification (international standard for the highest laser security level), the LW3 ensures that the operator and workplace stays safe.

The door automatically closes before the marking is launched, securing the laser beam within the laser marking machine’s enclosure. The operator can then observe the laser marking through the dedicated secure window, without needing protective glasses. In addition, sensors check if the door is closed.

Finally, the LW3 and touchscreen are ready to pilot an exhaust system, for smoke and particle extraction. Because, during the laser marking, fumes and particles can be generated and need to be extracted to proper filtration systems.



PC free laser marking

The LW3 is one of the few industrial laser stations to not continuously require a PC or laptop to work.

Would it be a barcode, 2D code, text, date or logo, the marking job is created thanks to one of our industrial software: Lasertrace or Gravostyle™. It is then sent and hosted within the LW3.

This means that the marking files are accessed and launched through the attached touchscreen, adding autonomy to our workstation.



Manageable industrial laser

For a galvanometric laser station of its size, the LW3 only weighs 200 kg.

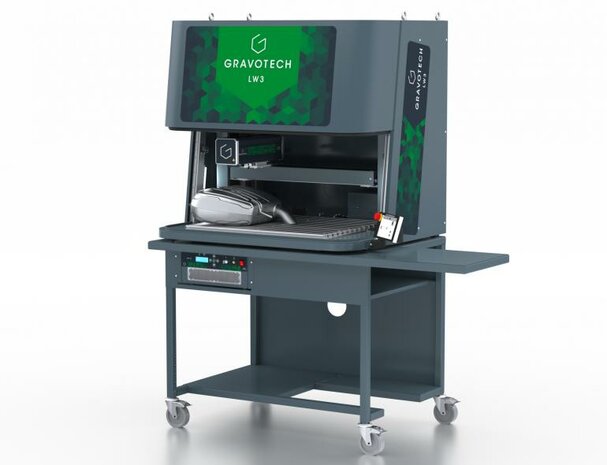

When positioned on our dedicated trolley, it then can easily be moved around for commissioning, or if its permanent marking capabilities are needed elsewhere.

The workstation trolley, optional wheels and relative light weight make the LW3 an easy to move large laser engraver. You can reassign and adapt it to various industrial creation processes.
