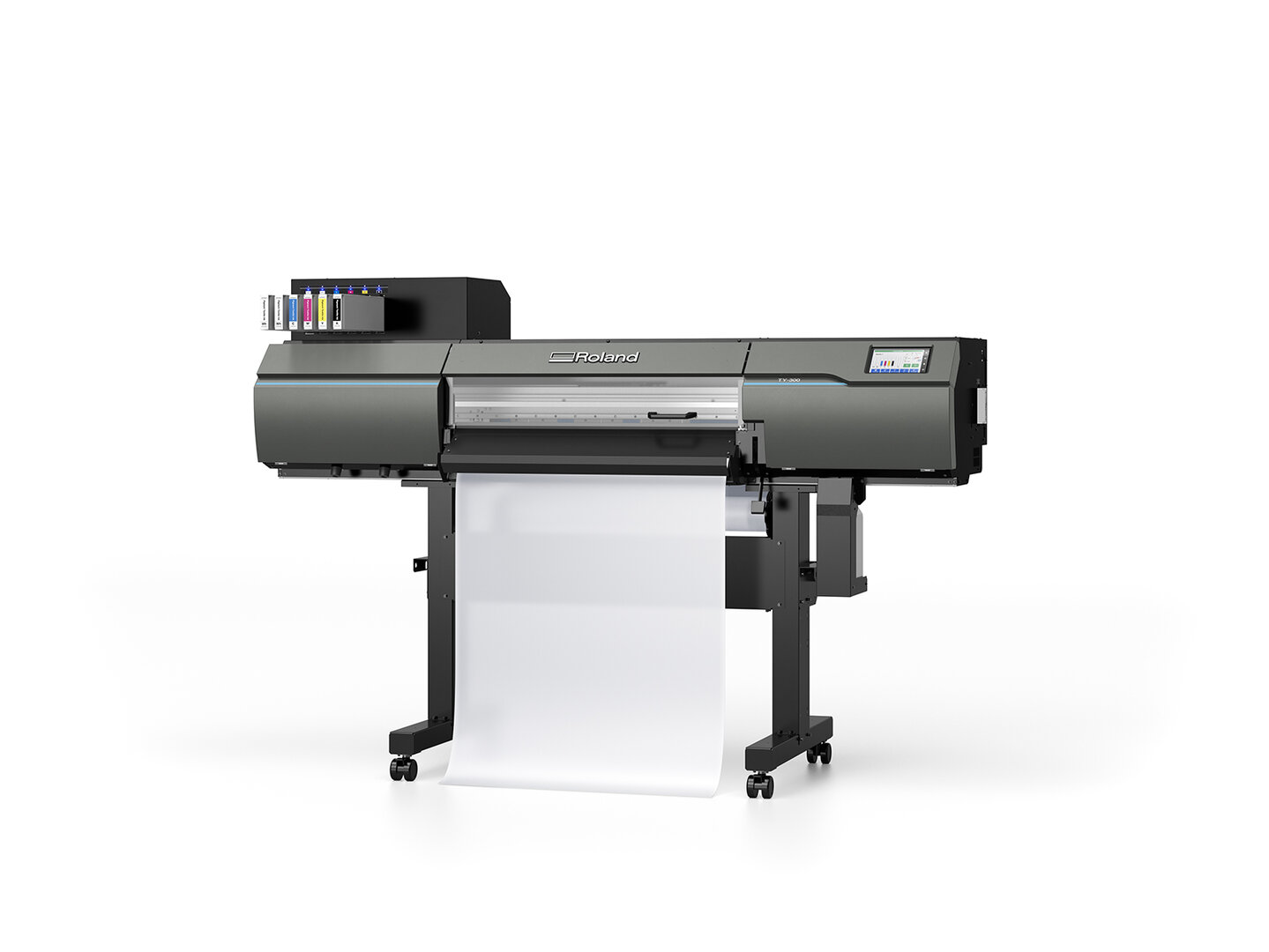

| TY-300 |
| Printing Method |
Piezo ink-jet method |
| Media |
Width |
7.2 to 30 in (182 to 762 mm) |
| Thickness |
Maximum 39.3 mil (1.0 mm) with liner for printing, Maximum 15.7 mil (0.4 mm) with liner and 8.6 mil (0.22 mm) without liner for cutting |
| Roll outer diameter |
Maximum 9.84 in (250 mm) |
| Roll weight |
66.1 lb (30 kg) |
| Core diameter |
3 in (76.2 mm) or 2 in (50.8 mm) |
| Printing/cutting width (*1) |
Maximum 28.9 in (736 mm) |
| Ink |
Type |
S-PG2 INK 500 ml cartridge |
| Colours |
Five colours (cyan, magenta, yellow, black, and white) |
| Printing resolution |
Maximum 1,200 dpi |
| Cutting speed |
0.39 to 11.8 in/s (10 to 300 mm/s) |
| Blade force (*2) |
30 to 500 gf |
| Blade type |
CAMM-1 series blade |
| Blade offset |
0.0 to 59 mil (0.000 to 1.500 mm) |
| Software resolution (cutting) |
0.98 mil/step (0.025 mm/step) |
| Media heating system (*3) |
Print heater set temperature: 86 to 113°F (30 to 45°C), Dryer set temperature: 86 to 122°F (30 to 50°C) |
| Connectivity |
Ethernet (100BASE-TX/1000BASE-T, automatic switching) |
| Power-saving function |
Automatic sleep feature |
| Rated input |
100-120 / 220-240 Vac 50/60 Hz 6.4/3.0 A |
| Power consumption |
During operation |
Approx. 840W |
| Sleep mode |
Approx. 70W |
| Acoustic noise level |
During operation |
63 dB (A) or less |
| During standby |
58 dB (A) or less |
| Dimensions (Width x Depth x Height) |
80 in x 29.5 in x 55.8 in (2,032 mm x 748 mm x 1,415 mm) |
| Weight |
298 lb (135 kg) |
| Environment |
During operation (*4) |
68 to 82.4°F (20 to 28°C), Humidity: 40 to 60% RH (no condensation) |
| Not operating |
41 to 104°F (5 to 40°C), Humidity: 20 to 80% RH (no condensation) |
| Included Items |
Dedicated stand, Power cord, Media holders, Separating knife, Replacement blade, Cleaning liquid, Drain bottle, User's Manual, Software（VersaWorks, Roland DG Connect), etc. |
| *1 |
The length of printing or cutting is subject to the limitations of the program. |
| *2 |
500 gf is the maximum instantaneous blade force. |
| The blade force must be adjusted according to details such as the media thickness. |
| *3 |
Warm-up is required after power up. This may require 5 to 20 minutes, depending on the operating environment. |
| Depending on the ambient temperature and media width, the preset temperature may fail to be reached. |
| *4 |
Operating environment (Use in an operating environment within this range.) |
