  • Printers /
  • VersaOBJECT MO-240

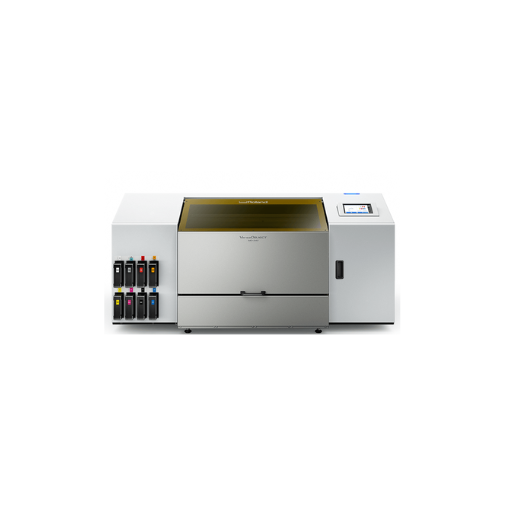

VersaOBJECT MO-240
VersaOBJECT MO-240
VersaOBJECT MO-240
VersaOBJECT MO-240
VersaOBJECT MO-240
VersaOBJECT MO-240
Please contact us

VersaOBJECT MO-240

Expand your business with high-definition, high-speed digital printing thanks to the VersaOBJECT MO-240. Our advanced UV flatbed printer gives you the power to dominate a growing direct-print market t

This product has a minimum purchase quantity of 1)
There are not enough products in stock
Request a quotation
VersaOBJECT MO-240

Product description

  • High-Definition Print: Reproduce small letters, fine textures, gradations, and colour-matched graphics with ease.
  • High Productivity: Do more with staggered printheads, powerful UV lamps, and an A2 print bed.

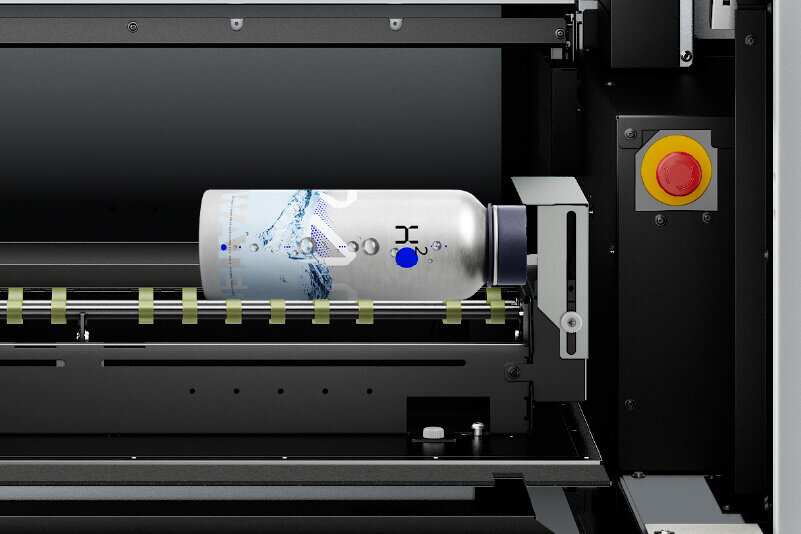

  • Greater Flexibility: Print up to 204 mm, as standard and unlock cylindrical items with an optional attachment.
  • Intuitive Interface: Now with touchscreen control and more powerful, easy-to-use VersaWorks software.


Newly developed print heads and LED lamp technology, coupled with advanced software and industry-leading inks give you the power to reproduce small letters, fine textures, gradations, and colour-matched graphics with ease. Furthermore, Orange and Red inks extend your achievable gamut letting you hit colours that previously could not be reproduced.

Whether you need vibrant image reproduction, high-opacity white ink, or the ability to print textures, the MO-240 UV printer is the answer.

The MO-240 is engineered to deliver high productivity with print speeds up to approximately 1.4 times faster than comparable models from other brands. The staggered print head configuration, powerful lamps and increased bed-size deliver printing speeds of up to 2.39 m2/h in standard mode, letting you get more done. Denser white ink means you can print white twice as fast as previous models and Gloss ink can now be printed in thicker layers, doubling the speed.

Improvements to the setup process make it easier to switch between products and jigs of items with ease. The included software also lets you unlock unprecedented productivity with multi-layer printing, meaning that you can outperform your competition when printing on almost any substrate.



Specifications

Model MO-240
Printing Method Piezo ink-jet method
 Attachable objects to be printed on


 Width Max. 640 mm (25.1 in.)
Length Max. 488 mm (19.2 in.)
Thickness Max. 204 mm (8 in.)
Weight  Max. 8 kg (17.6 lb.) (When using a vacuum table: max. 4 kg [8.8 lb.])
Printing width/printing length
(width x length)
Max. 610 mm × 458 mm (24 in. × 18 in.)
Ink Type ECO-UV (EUV5P) 750 ml pouch
Colours Eight colours (cyan, magenta, yellow, black, gloss, white, orange, and red)
Seven colours (cyan, magenta, yellow, black, white, orange, and red) and primer
Seven colours (cyan, magenta, yellow, black, gloss, white, and red) and primer
Seven colours (cyan, magenta, yellow, black, white x 2, orange, and red)
Six colours (cyan, magenta, yellow, black, gloss, and white x 2) and primer
Six colours (cyan, magenta, yellow, black, gloss x 2, and white x 2)
Four colours (Cyan, Magenta, Yellow, Black)
Ink-curing unit Built-in UV-LED lamp
Printing resolution (dots per inch) Max. 1,200 dpi
Connectivity Ethernet (100BASE-TX/1000BASE-T, automatic switching)
Power-saving function Automatic sleep feature
Power requirements 100 - 240 Va.c. 50/60 Hz 3.5A
Power consumption During operation  Approx. 290 W
Sleep mode    Approx. 70 W
Acoustic noise level During operation 60 dB (A) or less
During standby 49 dB (A) or less
Dimensions (width x depth x height) 1,601 mm × 1,267 mm × 760 mm (63.1 in. × 49.9 in. × 30.0 in.)
 Weight 211 kg (466 lb.)
Environment  During operation(*1)  Temperature: 20 to 32 °C (68 to 89.6 °F), Humidity: 35 to 80 %RH (no condensation)
Not operating  Temperature: 5 to 40 °C (41 to 104 °F), Humidity: 20 to 80 %RH (no condensation)
 Included Items Power cord, cleaning liquid, drain bottle, User's Manual, software (VersaWorks, Roland DG Connect) etc.


1Operating environment (Use the machine in an operating environment within these ranges.)

Attachments
moen.pdf
